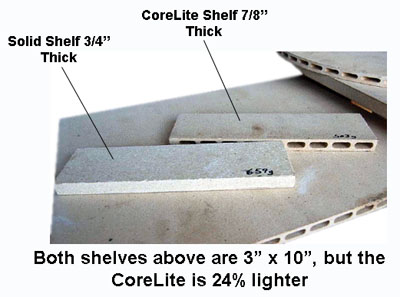

New CoreLite Kiln Shelves Corelite is 24% lighter than other shelves

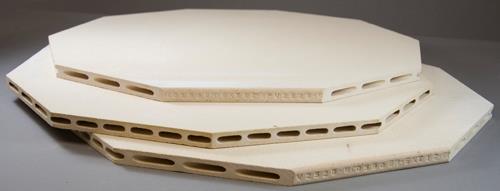

CoreLite Kiln Shelves
CoreLite Advantages

Lighter:
  • Less back strain and fatigue
  • Lower firing cost
  • Lower shipping cost
Flatter:
  • Each shelf is ground top and bottom for perfect flatness
  • Ware keeps its shape while firing, especially tile
Stronger:
  • Less warpage
  • Less likely to propagate cracks thru cores
  • More firing cycles

Stocked Shelves

Round CoreLite Shelves
  Description Weight
Code
Buy Now 15" Round x 5/8" 5.5 lbs. EH1558R
Buy Now 15" Half Round x 5/8" 2.8 lbs. EH1558HR
Buy Now 20" Round x 5/8" 9.3 lbs. EH2058R
Buy Now 20" Half Round x 5/8" 4.5 lbs. EH2058HR
Buy Now 21" Round x 5/8" 10 lbs. EH2158R
Buy Now 21" Half Round x 5/8" 5 lbs. EH2158HR
Buy Now 26" Half Round x 5/8" 7.8 lbs. EH2658HR
Buy Now 26" Round x 1" 19.3 lbs. EH261R

Multi-Sided CoreLite Shelves
  Description Weight
Code
Buy Now Full Octagon 16" x 15" x 5/8" 6 lbs. EH1658F
Buy Now Half Decagon 22" x 101/2" x 5/8" 5.3 lbs. EH2258H
Buy Now Half 12-Sided 26" x 13" x 5/8" 7.3 lbs. EH2658H

Square & Rectangular CoreLite Shelves
  Description Weight
Code
Buy Now Square 16" x 16" x 1" 9.8 lbs. EH16161
Buy Now Square 20" x 20" x 1" 16.5 lbs. EH20201
Buy Now Rectangle 24" x 12" x 1" 12.3 lbs. EH24121
Buy Now Square 24" x 24" x 1" 25.6 lbs. EH24241
Buy Now One Piece Oval 39" x 22" x 1" 36.6 lbs. EH39221F

Non-Stocked Shelves*

Square & Rectangular CoreLite Shelves
  Description Weight Code
Buy Now Square 18" x 18" x 1" 12.5 lbs. EH18181
Buy Now Rectangle 20" x 10" x 3/4" 7.5 lbs. EH201034
Buy Now Rectangle 22" x 11" x 1" 12 lbs. EH22111
Buy Now Rectangle 24" x 12" x 5/8" 11.8 lbs. EH241258
Buy Now Rectangle 24" x 18" x 1" 19.6 lbs. EH24181
Buy Now Rectangle 26" x 13" x 5/8" 11.5 lbs. EH261358
Buy Now Rectangle 26" x 13" x 1" 14.3 lbs. EH26131
Buy Now Rectangle 28" x 14" x 1" 18.3 lbs. EH28141
Buy Now Rectangle 39.3" x 24" x 1" 41.8 lbs. EH39241

Round CoreLite Shelves
  Description Weight
Code
Buy Now 251/2" Round x 5/8" 15.8 lbs. EH2558R
Buy Now 251/2" Half Round x 5/8" 7.5 lbs. EH2558HR

Technical Specifications
Al2O3 48.75%
SiO2 44.40%
Fe2O3 0.86%
MgO 4.61%
TiO2 0.47%
CaO 0.07%
Na2O + K2O 0.84%
Thermal Shock Resistance Excellent
Maximum Working Temperature 2336°F
Thermal Expansion 1.06 x 10-6 in/in/°F
Apparent Specific Density 129 pcf
Apparent Porosity 21.50%
Water Absorption 10.40%
Modulus of Rupture >2175 psi
26" X 13" X 5/8" 12-Sided Half Shelf Rectangular CoreLite Kiln Shelf
26" X 13" X 5/8" 12-Sided Half Shelf
